ARM, Upper Control: Removal: Left
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

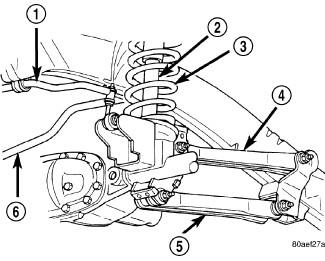

| 1 - STABILIZER BAR |
| 2 - SHOCK ABSORBER |
| 3 - COIL SPRING |
| 4 - UPPER CONTROL ARM |
| 5 - LOWER CONTROL ARM |
| 6 - TRACK BAR |
- Raise and support the vehicle.NOTE:
Discard the nuts and bolts and do not reuse. New nuts and bolts should be used when replacing or servicing the control arms.
- Remove the upper control arm (4) nut and bolt at the axle bracket. Refer to Fig 1.
- Remove the nut and bolt at the frame rail and remove the upper control arm (4).
