ARM, Upper Control: Installation: Left
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

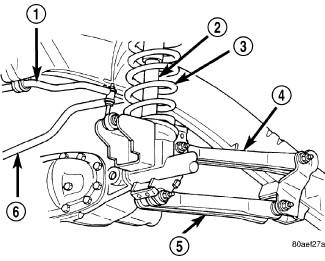

| 1 - STABILIZER BAR |
| 2 - SHOCK ABSORBER |
| 3 - COIL SPRING |
| 4 - UPPER CONTROL ARM |
| 5 - LOWER CONTROL ARM |
| 6 - TRACK BAR |
NOTE:
Discard the nuts and bolts and do not reuse. New nuts and bolts should be used when replacing or servicing the control arms.
- Position the upper control arm (4) at the axle and frame rail.
- Install the bolts and finger tighten the nuts.
- Remove the supports and lower the vehicle.
- Tighten nut at the axle bracket and frame bracket to specifications. Refer to SPECIFICATIONS .
