ACTUATOR, Stabilizer Bar: Removal: Removal
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

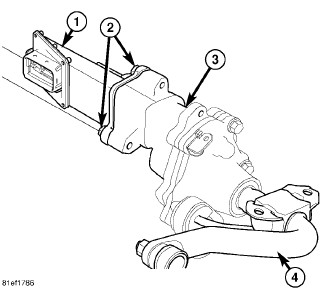

The disconnecting stabilizer bar unit (3) is not serviced separately from the bar (4). Do not disassemble this unit from the stabilizer bar.
- Raise and support the vehicle.NOTE:
Before removing the connector from the actuator (1) clean the outside of the connector with a cleaner and compressed air, to remove any dirt or debris.
- Disconnect the electronic actuator electrical connector for the disconnecting stabilizer bar.
- Remove the 3 actuator bolts (2) then remove the actuator (1).
