4X4-Coil Over

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Shock Removal
GC0091569Courtesy of CHRYSLER LLC
  1. Remove the shock (1). Refer to SHOCK ABSORBER, Suspension , Removal .

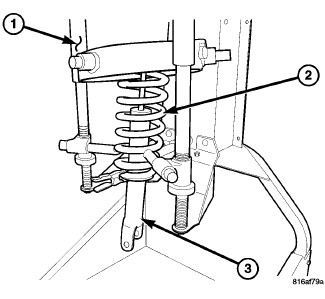

    Fig 2: Identifying Shock Assembly And Spring
    GC0083207Courtesy of CHRYSLER LLC
  2. Install the shock assembly (3) in the Branick 7200 R spring removal/installation tool or equivalent (1).
  3. Compress the spring (2).

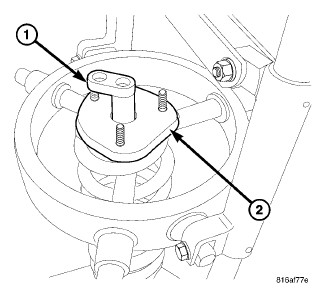

    Fig 3: 9362 Tool
    GC0083208Courtesy of CHRYSLER LLC
  4. Position Strut Nut Wrench (special tool #9362, Wrench, Strut Nut) (1), on shock shaft retaining nut. Next, insert 8 mm socket though Wrench onto hex located on end of shock shaft. While holding shock shaft from turning, remove nut from shock shaft using Wrench (1).
  5. Remove the upper shock nut.

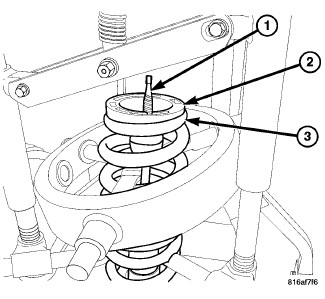

    Fig 4: Isolators
    GC0091570Courtesy of CHRYSLER LLC
  6. Remove the shock upper mounting plate.
  7. Remove the dust cover.
  8. Remove and inspect the upper spring isolator (2).
  9. Remove the shock.
