SHOCK ABSORBER, Suspension: Removal: 4X2
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support vehicle.
- Support the lower control arm outboard end.

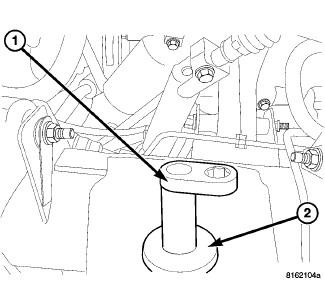

- Remove the upper shock absorber nut by using Strut Nut Wrench (special tool #9362, Wrench, Strut Nut) (1), retainer and grommet (2). If necessary, insert 11/32 socket though Wrench onto hex located on end of shock shaft to prevent shaft from turning.
- Remove the lower bolts and remove the shock absorber.
