Hub And Bearing: Removal: 4X2

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the wheel and tire assembly.

Remove the brake caliper and rotor. Refer to ROTOR, Brake , Removal .

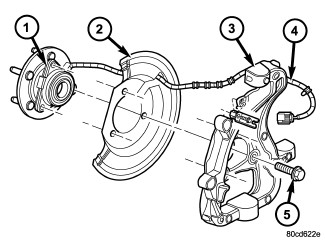

Fig 1: Hub/Bearing 4X2

Courtesy of CHRYSLER LLC

1 - HUB/BEARING

2 - DUST SHIELD

3 - STEERING KNUCKLE

4 - WHEEL SPEED SENSOR WIRE

5 - HUB/BEARING MOUNTING BOLT

Remove the ABS wheel speed sensor if equipped (4), Refer to SENSOR, Wheel Speed, Front , Removal .
Remove the three hub/bearing mounting bolts (5) from the steering knuckle (3).
Slide the hub/bearing (1) out of the steering knuckle (3).
Remove the brake dust shield (2).
