Hub And Bearing: Installation: 4X2
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

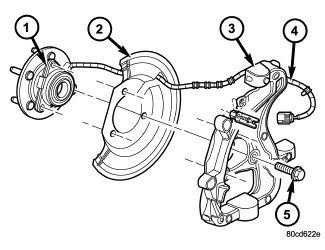

| 1 - HUB/BEARING |
| 2 - DUST SHIELD |
| 3 - STEERING KNUCKLE |
| 4 - WHEEL SPEED SENSOR WIRE |
| 5 - HUB/BEARING MOUNTING BOLT |
- Install the brake dust shield (2).
- Install the hub/bearing (1) into the steering knuckle (3) and tighten the bolts (5) to specifications. Refer to SPECIFICATIONS .
- Install the brake rotor and caliper. Refer to ROTOR, Brake , Installation .
- Install the ABS wheel speed sensor (4) if equipped. Refer to SENSOR, Wheel Speed, Front , Installation .
- Install the wheel and tire assembly. Refer to Wheels , Standard Procedure .
- Remove the support and lower vehicle.
