ARM, Lower Control: Installation: 4X4

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

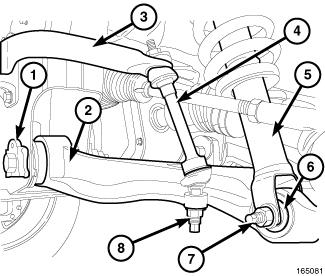

Fig 1: Lower Control Arm
GC0091547Courtesy of CHRYSLER LLC
  1. Position the lower control arm (2) at the frame rail brackets. Install the pivot bolts (1) and nuts, and tighten the nuts finger-tight.
    CAUTION:

    The ball joint stud taper must be CLEAN and DRY before installing the knuckle. Clean the stud taper with mineral spirits to remove dirt and grease.

  2. Insert the lower ball joint stud into the steering knuckle. Install and tighten the retaining nut to specifications. Refer to SPECIFICATIONS .
  3. Install shock absorber lower bolt/nut (7) and tighten to specifications. Refer to SPECIFICATIONS .
  4. Install the stabilizer bar link lower nut (8) and tighten to specifications. Refer to SPECIFICATIONS .

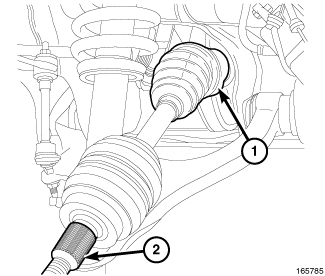

    Fig 2: Half Shaft
    GC0091566Courtesy of CHRYSLER LLC
  5. Install the front halfshaft to the axle by pushing the inner C/V (1) firmly to engage axle shaft snap ring into the inner C/V housing.
  6. Clean hub bearing bore, hub bearing mating surface and half shaft splines (2) and apply a light coating of grease to the front axle shaft output splines.
    Fig 3: Half Shaft & Hub/Bearing

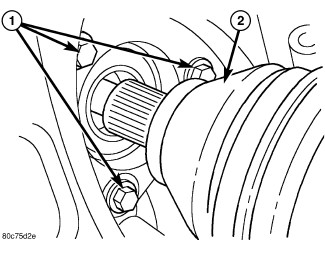

    GC0083190Courtesy of CHRYSLER LLC
  7. Install half shaft (2) into the knuckle.
    Fig 4: Ball Joint Separator - 9360 Tool
    GC0091564Courtesy of CHRYSLER LLC
  8. Insert the upper ball joint (4) into the steering knuckle (6).
  9. Install and tighten the upper ball joint retaining nut to specifications. Refer to SPECIFICATIONS .
  10. Tighten the lower control arm front pivot nut and rear pivot bolt to specifications. Refer to SPECIFICATIONS .

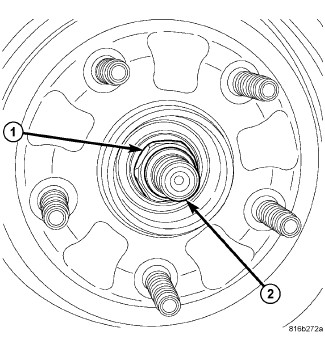

    Fig 5: Half Shaft Nut
    GC0083229Courtesy of CHRYSLER LLC
  11. Install half shaft hub nut (1) and tighten to specifications. Refer to SPECIFICATIONS .
  12. Install the wheel and tire assembly. Refer to Wheels , Standard Procedure .
  13. Remove the support and lower the vehicle.
  14. Perform a wheel alignment. Refer to Wheel Alignment , Standard Procedure .
