Timing - Single Camshaft

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

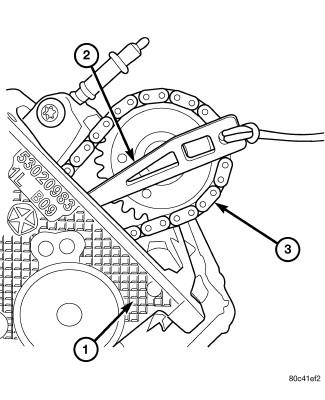

Fig 1: Adjusting Timing On One Camshaft

Courtesy of CHRYSLER LLC

NOTE:

To adjust the timing on one camshaft, perform the following procedure.

Using the Wedge Locking Tool (special tool #8379, Locking Tool, Wedge) (2), stabilize the secondary chain drive. For reference purposes, mark the chain-to-sprocket position.

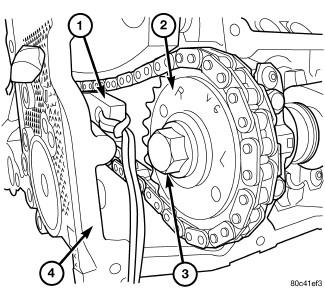

Fig 2: Installing Special Tool
Courtesy of CHRYSLER LLC
Remove the camshaft drive gear retaining bolt (3).
Carefully remove the camshaft drive gear from the camshaft.

Fig 3: CAMSHAFT SPROCKET V6 MARKS (#1 TDC, Exhaust stroke)
Courtesy of CHRYSLER LLC
Re-index the camshaft drive gear in the chain until the V6 mark is at the same position as the V6 mark on the opposite camshaft drive gear (1,2).
Using the Camshaft Holder (special tool #8428A, Holder, Camshaft), rotate the camshaft until the alignment dowel on the camshaft is aligned with the slot in the camshaft drive gear.
CAUTION:
Remove excess oil from camshaft sprocket retaining bolt before reinstalling bolt. Failure to do so may cause over-torqueing of bolt resulting in bolt failure.
Position the camshaft drive gear onto the camshaft, remove oil from bolt then install the retaining bolt. Using Special Tools, Spanner Wrench (special tool #6958, Wrench, Spanner) with Adapter Pins (special tool #8346, Pins, Adapter) and a suitable torque wrench, tighten the retaining bolt to 122 N.m (90 ft. lbs.)
Remove the Wedge Locking Tool (special tool #8379, Locking Tool, Wedge).
Rotate the crankshaft two full revolutions, then verify that the camshaft drive gear V6 marks are in fact aligned.
Install the cylinder head covers. Refer to COVER(S), Cylinder Head , Installation , 3.7L for left head cover and COVER(S), Cylinder Head , Installation , 3.7L for right head cover.
