Left Exhaust Manifold

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

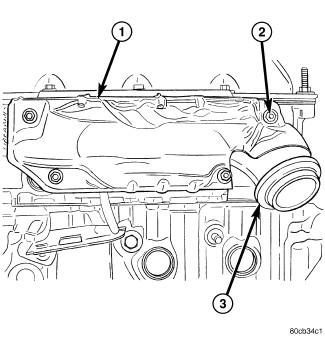

Fig 1: Exhaust Manifold - Left
GC0083552Courtesy of CHRYSLER LLC
1 - HEAT SHIELD
2 - NUTS
3 - MANIFOLD FLANGE
  1. Disconnect the negative cable from the battery.
  2. Raise and support the vehicle.
  3. Remove the bolts and nuts attaching the exhaust pipe to the engine exhaust manifold.
  4. Lower the vehicle.
  5. Remove the exhaust heat shields (1).
  6. Remove bolts, nuts and washers attaching manifold to cylinder head.
  7. Remove manifold and gasket from the cylinder head. Refer to Fig 1.
