Standard Procedure - Engine Oil Service: Notes
WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

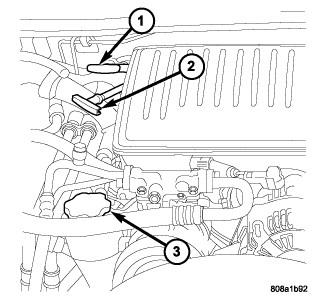

| 1 - TRANSMISSION DIPSTICK |
| 2 - ENGINE OIL DIPSTICK |
| 3 - ENGINE OIL FILL CAP |
The engine oil level indicator (1) is located at the right rear of the engine on the 3.7L/4.7L engines. Refer to Fig 1.
