Checking Engine Oil Pressure
WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

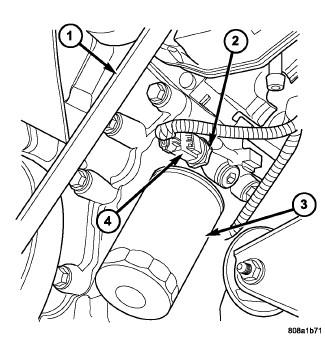

| 1 - BELT |
| 2 - OIL PRESSURE SENSOR |
| 3 - OIL FILTER |
| 4 - ELECTRICAL CONNECTOR |
- Remove oil pressure sending unit (2) and install gauge assembly (special tool #C-3292A, Gauge, Pressure). Refer to Fig 1.
- Run engine until thermostat opens.
- Oil Pressure:
- Curb Idle - 25 kPa (4 psi) minimum
- 3000 RPM - 170 - 758 kPa (25 - 110 psi)
- If oil pressure is 0 at idle, shut off engine. Check for a clogged oil pick-up screen or a pressure relief valve stuck open.
