Engine Block: FLEXPLATE: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

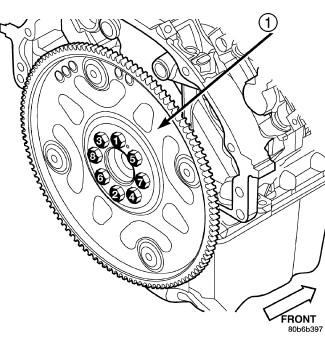

Fig 1: Identifying Flex Plate
GC0082865Courtesy of CHRYSLER LLC
1 - FLEXPLATE
  1. Position the flexplate onto the crankshaft and install the bolts hand tight.
  2. Tighten the flexplate (1) retaining bolts to 95 N.m (70 ft. lbs.) in the sequence shown in illustration. Refer to Fig 1.
  3. Install the transmission.
