DAMPER, Vibration: Installation: Installation

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Damper Installer & A/C Hub Installer Cup
GC0087852Courtesy of CHRYSLER LLC
CAUTION:

To prevent severe damage to the crankshaft, damper, and damper installer (special tool #8512A, Installer, Damper), thoroughly clean the damper bore and the crankshaft nose before installing damper.

  1. Position the damper onto the crankshaft.
  2. Assemble the damper installer (special tool #8512A, Installer, Damper) (2) and the A/C hub installer cup (special tool #6871, Installer, A/C Hub) (1).

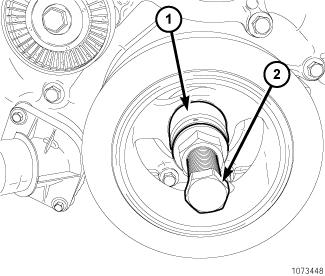

    Fig 2: Pressing Damper Onto Crankshaft
    GC0087853Courtesy of CHRYSLER LLC
  3. Using the damper installer (special tool #8512A, Installer, Damper) (2) and the A/C hub installer cup (special tool #6871, Installer, A/C Hub) (1), press the damper onto the crankshaft.
  4. Coat the vibration damper bolt threads with Mopar® Nickel Anti-Seize or equivalent, install and tighten the bolt to 175 N.m (130 ft. lbs.).
  5. Install the cooling fan assembly. Refer toFAN, Cooling, Electric , Installation and FAN, Cooling, Viscous , Installation .
  6. Install the radiator upper shroud and tighten fasteners to 11 N.m (95 in. lbs.).
  7. Install the radiator upper hose.
  8. Install the accessory drive belt. Refer toBELT, Serpentine , Installation .
  9. Refill the cooling system. Refer toStandard Procedure .
  10. Connect the negative battery cable.
