COVER(S), Cylinder Head: Installation: Installation
WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.

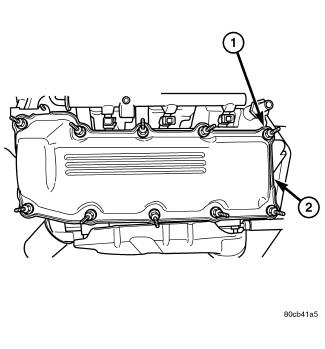

| 1 - SCREWS |
| 2 - CYLINDER HEAD COVER |
CAUTION:
Do not use harsh cleaners to clean the cylinder head covers. Severe damage to covers may occur.
NOTE:
The gasket may be used again, provided no cuts, tears, or deformation has occurred.
- Clean cylinder head cover and both sealing surfaces. Inspect and replace gasket as necessary.
- Install cylinder head cover (2). Refer to Fig 1.
- Tighten cylinder head cover bolts (1) and double ended studs to 12 N.m (105 in. lbs.).
- Install left side breather and connect breather tube.
- Connect injector electrical connectors and injector harness retaining clips.
- Install the resonator and air inlet hose.
- Connect negative cable to battery.
