Diagnostic Test

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR AN ACTIVE DTC
1. Turn the ignition on.
2. With the scan tool, record and erase DTCs.
3. Wait 30 seconds.
4. With the scan tool, read DTCs.
  Does the scan tool display this DTC as active?

  Yes
  - Go To 2.
  No
  - The condition that caused this code to set is not present at this time. Check for an intermittent condition by inspecting the related wiring harness for chaffed, pierced, pinched, and partially broken wires. Also inspect the related connectors for broken, bent, pushed out, spread, corroded, or contaminated terminals.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

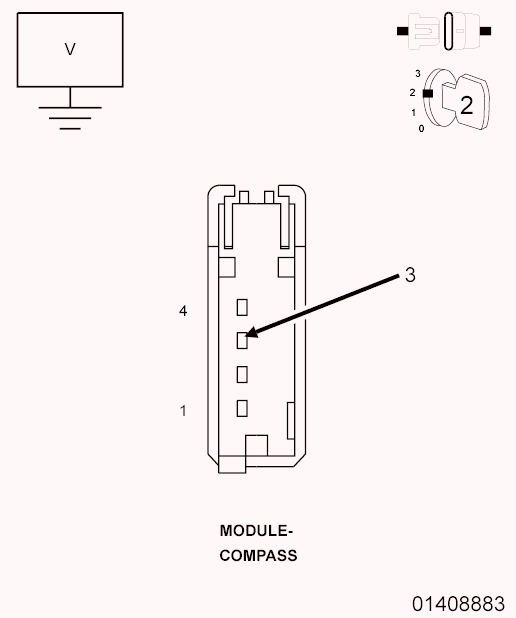

(D506) LIN BUS CIRCUIT FOR AN OPEN

Fig 1: Checking Lin Bus Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Compass Module harness connector.
3. Turn the ignition on.
4. Measure the voltage of the (D506) LIN BUS circuit.
  Is the voltage above 5 volts?

  Yes
  - Go To 4.
  No
  - Go To 3.

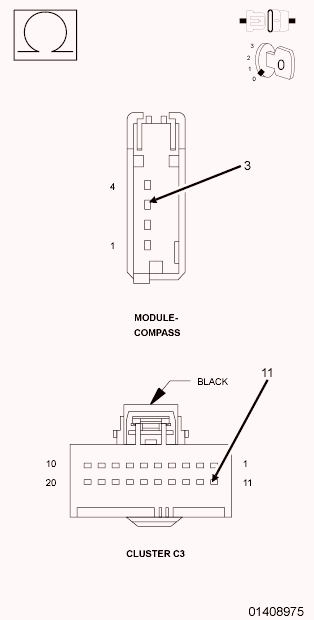

(D506) LIN BUS CIRCUIT FOR AN OPEN

Fig 2: Checking Lin Bus Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Disconnect the Cluster C3 harness connector.
3. Measure the resistance of the (D506) LIN BUS circuit.
  Is the resistance below 10K Ohms?

  Yes
  - Replace the Cluster in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Repair the (D506) LIN BUS circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

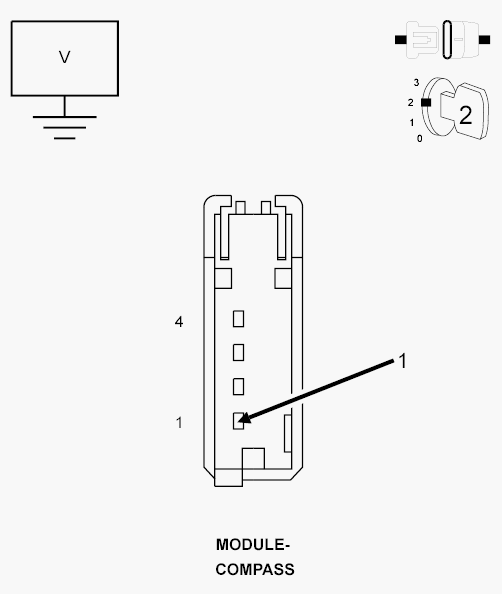

(A416) FUSED B(+) CIRCUIT FOR AN OPEN

Fig 3: Checking Fused B(+) Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition on.
2. Measure the voltage of the (A416) Fused B(+) circuit.
  Is the voltage above 10 volts?

  Yes
  - Go To 5.
  No
  - Repair the (A416) Fused B(+) circuit for an open. Inspect the related fuse. If the fuse is open, check the circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .

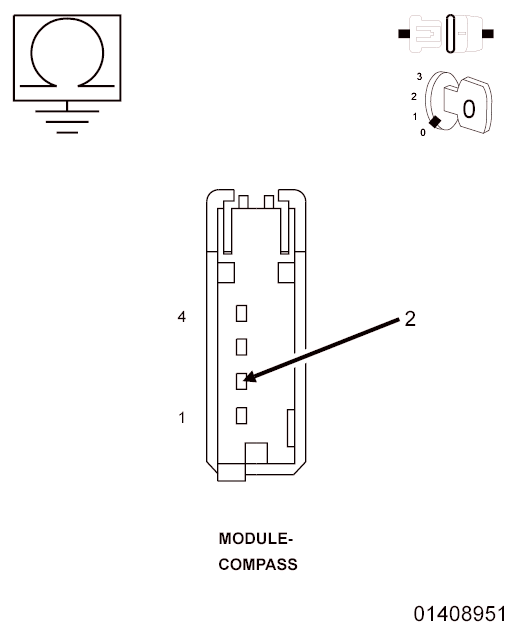

(Z906) GROUND CIRCUIT FOR AN OPEN

Fig 4: Checking Ground Circuit For An Open
Courtesy of CHRYSLER GROUP, LLC
1. Turn the ignition off.
2. Measure the resistance between ground and the (Z906) Ground circuit.
  Is the resistance below 10K Ohms?

  Yes
  - Replace the Compass Module in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
  No
  - Repair the (Z906) ground circuit for an open.
  - Perform the BODY VERIFICATION TEST. Refer to BODY VERIFICATION TEST .
