6.7L Diesel Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

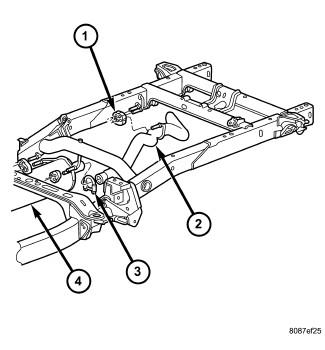

| 1 - ISOLATOR |
| 2 - TAILPIPE |
| 3 - CLAMP |
| 4 - MUFFLER |
- Disconnect the battery negative cables.
- Raise and support the vehicle.
- Saturate the clamp nuts with heat valve lubricant. Allow 5 minutes for penetration.
- Disconnect the exhaust tailpipe support hanger isolators.
- Remove the muffler-to-tailpipe clamps.
- Remove the tailpipe from the vehicle.
