TAILPIPE, Exhaust: Removal: 3.7L/4.7L/5.7L
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

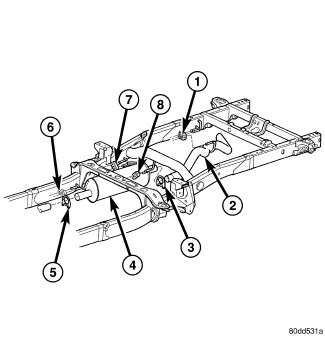

| 1 - INSULATOR |
| 2 - TAILPIPE |
| 3 - CLAMP |
| 4 - MUFFLER |
| 5 - CLAMP |
| 6 - INSULATOR |
| 7 - INSULATOR |
| 8 - INSULATOR |
- Raise and support the vehicle.
- Saturate the clamp (3) nuts with heat valve lubricant. Allow 5 minutes for penetration.
- Remove clamps and nuts.
- Disconnect the exhaust tailpipe (2) from the isolator (1).
- Remove the exhaust tailpipe (2).
