MUFFLER, Exhaust: Installation: Diesel
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

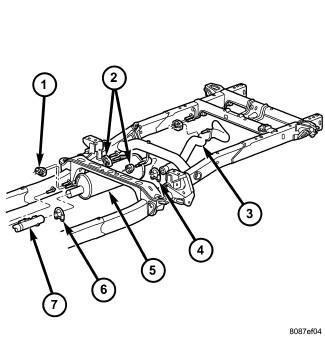

| 1 - INSULATOR |
| 2 - ISOLATOR |
| 3 - TAILPIPE |
| 4 - CLAMP |
| 5 - MUFFLER |
| 6 - CLAMP |
| 7 - EXTENSION PIPE |
- Install the muffler hanger rods into the isolators.
- Install the muffler into the extension pipe.
- Install the muffler into the tail pipe.
- Install the exhaust clamps, align the exhaust system, and tighten the exhaust clamps to 54 N.m (40 ft. lbs.).
- Check the exhaust system for contact with the body panels. A minimum of 25 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
- Insure isolators are fully seated on exhaust hangers.
- Lower the vehicle.
- Connect the battery negative cables.
- Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
