5.7L Engine Dual Exhaust
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

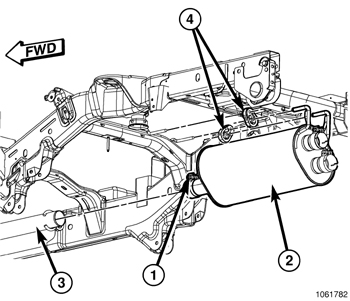

- Pre-assemble muffler (2) and clamp (1) loosely to permit proper alignment of all parts.
- Raise and support the vehicle.
- Hang the dual outlet muffler (2) on the isolators (4).
- Install muffler (2) on the exhaust pipe (3). Tighten to 54 N.m (40 ft. lbs.).
- Check the exhaust system for contact with the body panels. A minimum of 25 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
