3.7L/4.7L/5.7L Engine
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

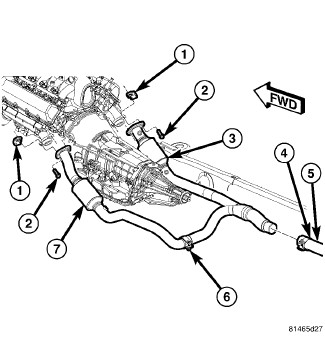

| 1 - NUT |
| 2 - BOLT |
| 3 - RH CATALYTIC CONVERTER |
| 4 - CLAMP |
| 5 - EXHAUST PIPE |
| 6 - CLAMP |
| 7 - LH CATALYTIC CONVERTER |
- Raise and support vehicle.
- Saturate the bolts and nuts with heat valve lubricant. Allow 5 minutes for penetration.
- Disconnect oxygen sensor electrical connectors.
- Remove clamp (4).
- Remove bolts exhaust to manifold (2).
- Remove catalytic converter (3).
