Section 174 (NV271 Transfer Case (Service Information)): Description: Description: Notes
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

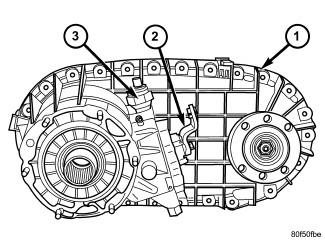

| 1 - TRANSFER CASE |
| 2 - MANUAL LEVER |
| 3 - POSITION SENSOR |
The NV271 transfer case (1) is a part-time transfer case with a low-range gear system. Refer to Fig 1. It provides three operating ranges plus a NEUTRAL position. The low range position provides a gear reduction ratio of 2.72:1 for increased low speed torque capability.
The gear cases and extension are all of aluminum. Drive sprockets and an interconnecting drive chain are used to transmit engine torque to the front/rear propeller shafts. The mainshaft, input gear and front output shaft are supported by ball and needle bearings.
