Output Speed Sensor

WARNING: This page is about a different car, the 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

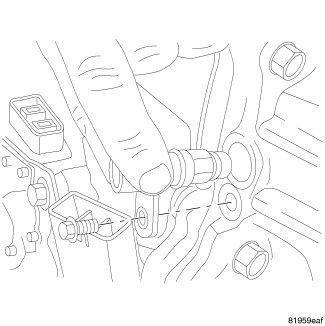

Fig 1: Output Speed Sensor
GC0109579Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle.
  2. Place a suitable fluid catch pan under the transmission.
  3. Remove the wiring connector from the output speed sensor.
  4. Remove the bolt holding the output speed sensor to the transmission case.
  5. Remove the output speed sensor from the transmission case.
