Pump, Transmission Oil: Operation: Operation: Notes
WARNING: This page is about a different car, the 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

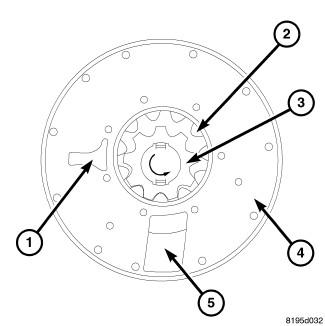

| 1 - OUTLET TO TRANSMISSION | 4 - OIL PUMP BODY |
| 2 - DRIVEN GEAR | 5 - INLET FROM OIL PAN |
| 3 - DRIVE GEAR |
As the torque converter rotates, the converter hub rotates the oil pump drive gear. As the drive gear rotates both driven gears, a vacuum is created when the gear teeth come out of mesh. This suction draws fluid through the pump inlet from the oil pan. As the gear teeth come back into mesh, pressurized fluid is forced into the pump outlet and to the oil pump valves.
