Sensor, Crankshaft Position: Removal: Removal
WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

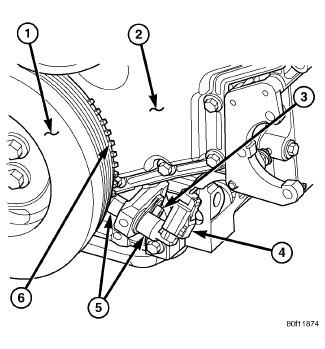

| 1 - ENGINE HARMONIC BALANCER |
| 2 - FRONT OF TIMING GEAR COVER |
| 3 - CKP MOUNTING BOLT |
| 4 - ELEC. CONNECTOR |
| 5 - CKP SENSOR |
| 6 - NOTCHES |
- Disconnect both negative battery cables.
- Disconnect Crankshaft Position (CKP) sensor harness connector (4).
- Remove bolt (3) and the CKP sensor (5).
