Switch, Seat, Power: Description

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

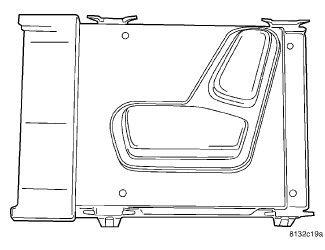

GC0080161Courtesy of CHRYSLER GROUP, LLC
NOTE:

Driver power seat switch shown.

The standard power driver seat and available power front passenger seat can be adjusted using the power seat switches located on the outboard seat cushion side shield. The driver power seat can be adjusted in ten different ways and the passenger power seat can be adjusted in four different ways.
