Section 1680 (BW44-46 Transfer Case - (Service Information) - 2500 Hd): Disassembly

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

GC0151996

Courtesy of CHRYSLER GROUP, LLC

Place the transfer case so that it can be drained of any remaining fluid and remove the fill (4) and drain plugs (1).
Remove the four shift motor mounting bolts (2) and remove the shift motor (3).

Courtesy of CHRYSLER GROUP, LLC

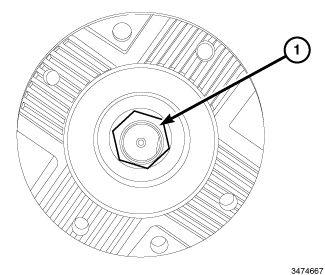

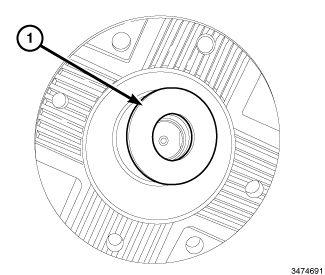

Remove the rear output shaft flange nut (1), if equipped.

Courtesy of CHRYSLER GROUP, LLC

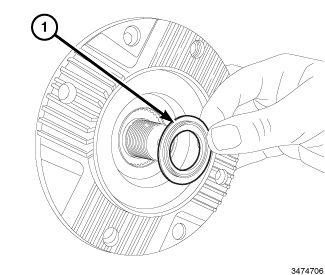

Remove the flange spacer (1), if equipped.

Courtesy of CHRYSLER GROUP, LLC
Remove the flange dust seal, if equipped.
Using a suitable puller, remove the output flange, if equipped.

Courtesy of CHRYSLER GROUP, LLC

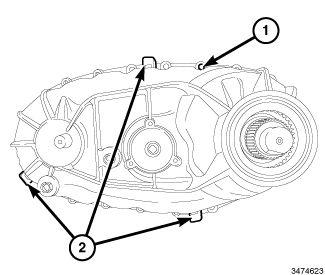

Remove all of the case half bolts (1).
Carefully using a prybar at pry points (2), separate and remove the rear case half.

Courtesy of CHRYSLER GROUP, LLC

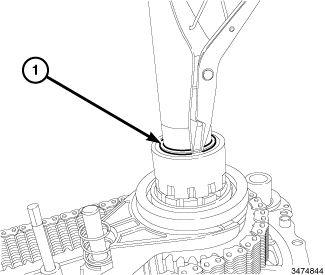

Remove the retaining ring (1).

Courtesy of CHRYSLER GROUP, LLC

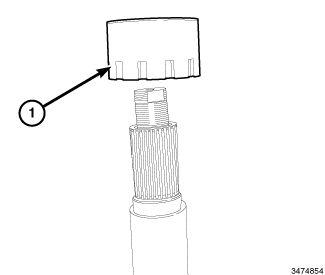

Remove the locking collar (1).

Courtesy of CHRYSLER GROUP, LLC

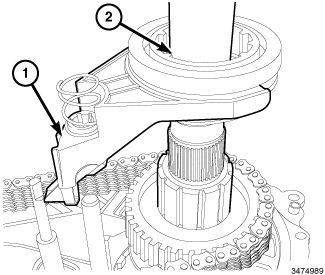

Remove the mode shift fork, spring and sleeve (1) from the main shaft (2).

Courtesy of CHRYSLER GROUP, LLC

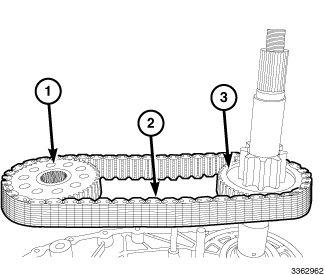

Remove the chain (2), the front out put gear (1) and main shaft gear (3) as an assembly.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
There are three alignment tabs and an oil pump hose pass through incorporated into the support that prevent the structure from rotating once installed.

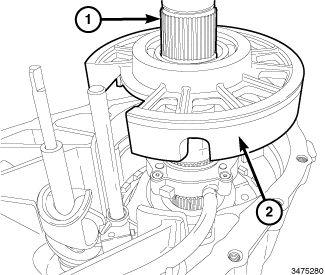

Remove the center bearing support assembly (2) from the mainshaft (1).

Courtesy of CHRYSLER GROUP, LLC

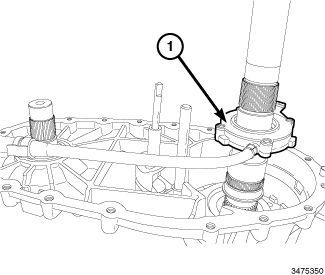

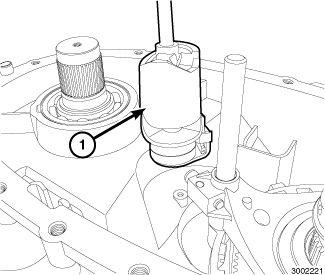

Remove the oil pump (1).

Courtesy of CHRYSLER GROUP, LLC

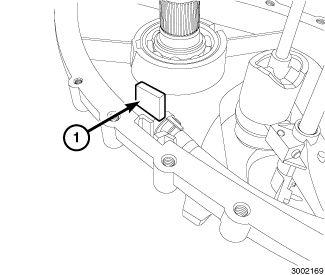

Remove the magnet (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the shift assembly (1).

Courtesy of CHRYSLER GROUP, LLC

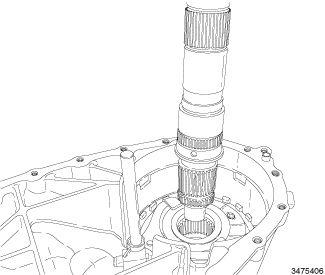

Remove the main shaft.

Courtesy of CHRYSLER GROUP, LLC

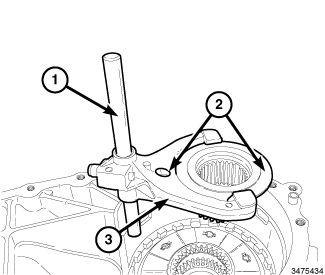

Remove the shift rail (1), lower shift fork (3), and the reduction hub as an assembly.
Separate the lower shift fork (3) from the reduction hub (2).
Separate the lower shift fork (3) from the shift rail (1).

Courtesy of CHRYSLER GROUP, LLC

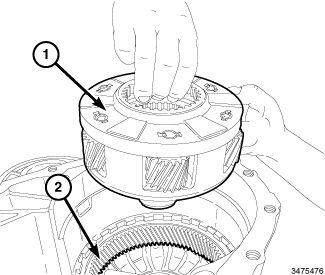

Lift the planetary carrier (1) straight up and out of the annulus gear (2).

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Bearing tabs face upward.

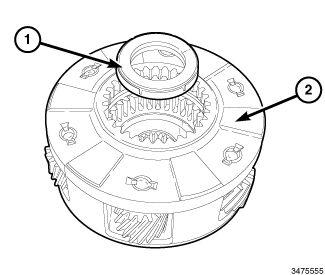

Remove the carrier thrust bearing (1) from the center of the planetary (2).

Courtesy of CHRYSLER GROUP, LLC

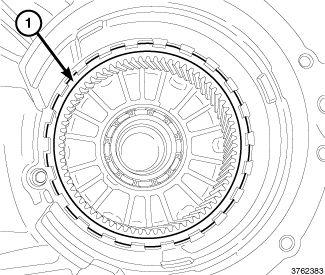

Remove the annulus gear retainer (1).

Courtesy of CHRYSLER GROUP, LLC

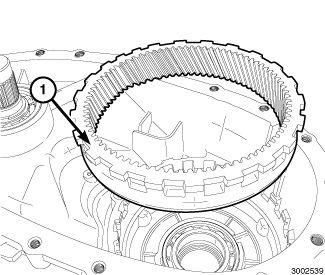

Remove the annulus gear (1).

Courtesy of CHRYSLER GROUP, LLC

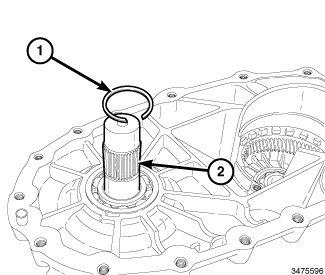

Remove the front output shaft retaining ring (1) from the front output shaft (2).

Courtesy of CHRYSLER GROUP, LLC

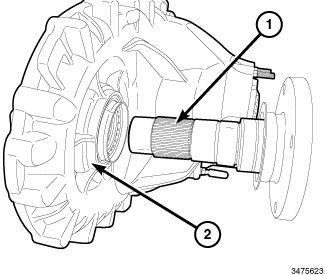

Remove the front output shaft (1) from the front case half (2).

Courtesy of CHRYSLER GROUP, LLC
Remove front output shaft seal.

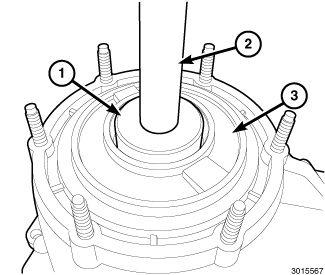

Using (special tool #9622, Installer, Countershaft Plug) (1) and (special tool #C-4171, Driver Handle, Universal) (2), remove the front output shaft bearing from the case half (3).

Courtesy of CHRYSLER GROUP, LLC
Remove input shaft seal.

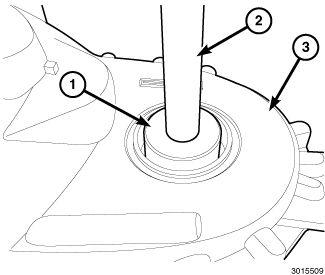

Using (special tool #9622, Installer, Countershaft Plug) (1) and (special tool #C-4171, Driver Handle, Universal) (2), remove the input shaft bearing from the case half (3).

Courtesy of CHRYSLER GROUP, LLC
Remove rear output shaft seal.

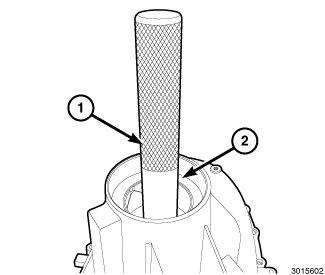

Using (special tool #5066, Installer, Bushing) and (special tool #C-4171, Driver Handle, Universal) (1), remove the input shaft bearing from the case half (2).

Courtesy of CHRYSLER GROUP, LLC
Secure the rear case half.

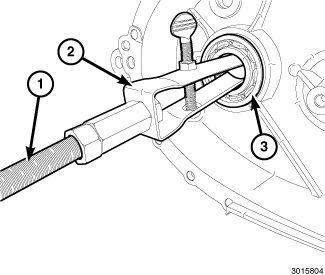

Using (special tool #7794-A, Remover, Seal) (2) and (special tool #C-637, Slide Hammer, Universal) (1), remove front output shaft rear bearing (3) from rear case half.
