Module, Hands Free (HFM): Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

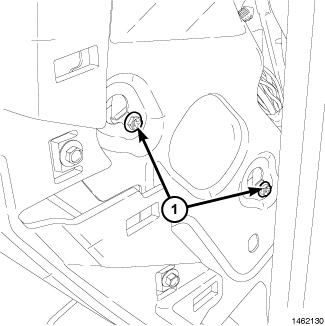

Fig 1: Hands Free (HFM) Mounting Fasteners
GC0087763Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative cable.
  2. Remove the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .
  3. Remove the instrument panel right side end cap.
  4. Remove the two mounting fasteners (1).

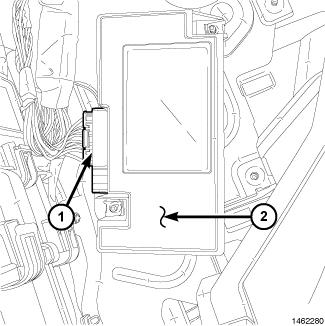

    Fig 2: Hands Free (HFM) Module & Electrical Harness Connector
    GC0087764Courtesy of CHRYSLER GROUP, LLC
  5. Disconnect the electrical harness connector and remove module.
