Motor, Vented Seat: Description
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

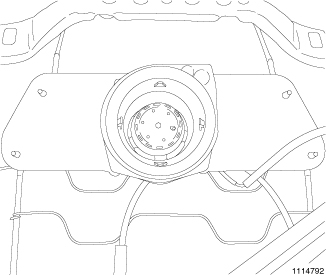

The vented seat motor assemblies are black with a metal support bracket and are mounted inside of the seat assemblies. The motors can be easily be seen once the seat cushions and covers have been removed.
The vented seat motors are located within the front seat assemblies. There are two vented seat motors per seat on vehicles equipped with the vented seat option. One vented seat motors is mounted to the seat back frame and the second motor is mounted to the seat bottom frame. Each motor is secured by 4 retaining clips and have a vented seat pad that attaches to it for seat ventilation.
