Pad, Heater: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

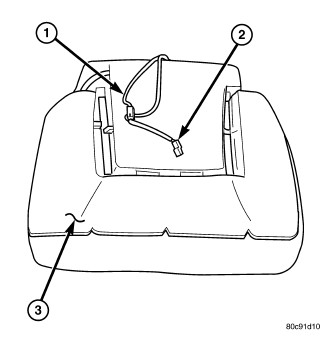

The factory installed heating elements (3) can be removed from the seat or seat back cushions by carefully peeling the element off along the adhesive lines.
NOTE:
Some vehicles come equipped with vented and heated seats front seats. The front seat elements of these vehicles have a one piece vented/heated pad assembly.
NOTE:
On vehicles quipped with vented seats, the vented/heated pad will have to be routed through the seat cushion prior to removing the element.
- Disconnect and isolate the negative battery cable.
- Remove the appropriate seat cushion or seat back cover.
- Disconnect the inoperative heated seat cushion or seat back element electrical connectors (2).
- Remove the heated seat element from the foam pad by peeling the element away from the cushion. Be careful not to remove excessive foam in the process.
