Shaft, Axle: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in neutral, position vehicle on hoist.
  2. Remove brake caliper, rotor and ABS wheel speed sensor if equipped.
    GC0155387Courtesy of CHRYSLER GROUP, LLC
  3. Remove axle shaft hub nut (1).
    GC0107649Courtesy of CHRYSLER GROUP, LLC
  4. Remove four hub bearing bolts (2) from the back of the steering knuckle.
  5. Remove hub bearing from the steering knuckle.

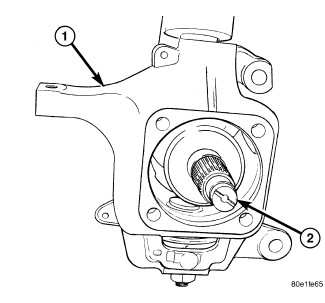

    GC0107650Courtesy of CHRYSLER GROUP, LLC
  6. Remove axle shaft (2) from steering knuckle (1) and axle housing.
