Seal, Axle Drive Shaft: Installation: Left: Right

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

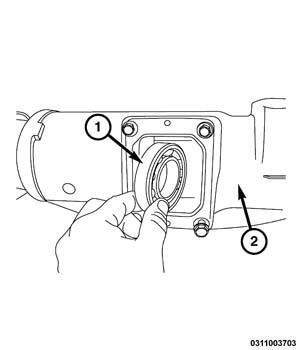

GC0155393Courtesy of CHRYSLER GROUP, LLC
  1. Install intermediate shaft ball bearing (1), if removed.

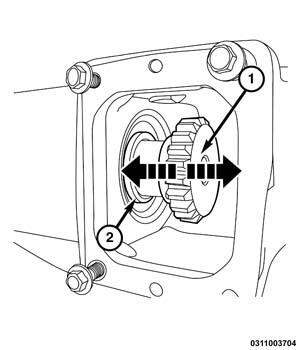

    GC0155391Courtesy of CHRYSLER GROUP, LLC
  2. Install intermediate shaft (1), if removed.

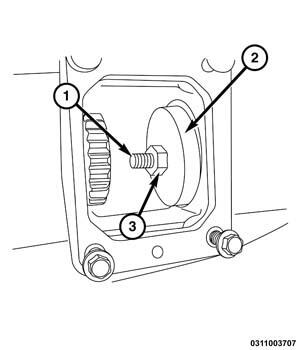

    GC0155382Courtesy of CHRYSLER GROUP, LLC
  3. Place the axle seal onto (special tool #8885-1, Installer Seal Plate) (2).

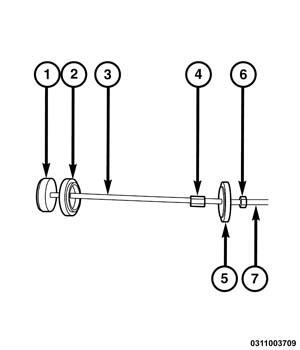

    GC0155384Courtesy of CHRYSLER GROUP, LLC
  4. Using (special tool #6310-7, Nut) (4), (special tool #6310-2, Disc) (3) and (special tool #5058A, Compressor, Spring) (7) connect the two threaded rods together with the 6310-7 nut.
  5. Thread a generic 1/2 x 13 nut (6) to (special tool #6310-7, Nut) so the threaded rods do not un-thread. (using as a jam nut).
  6. Slide the threaded rod though the axle tube, place (special tool #8885-1, Installer Seal Plate) (2) and seal through the threaded rod.
  7. Thread (special tool #8411, Installer, Seal) (1) behind 8885-1 using it as support.

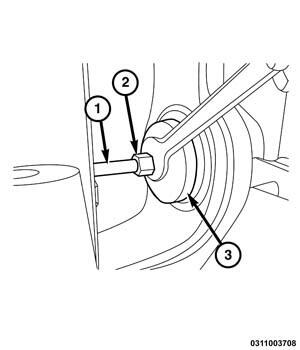

    GC0155392Courtesy of CHRYSLER GROUP, LLC
  8. Turn bolt (2) on threaded rod (1) until right axle seal is seated.
    NOTE:

    Use these tools for axle seal installation or

    equivalent.

    GC0155386Courtesy of CHRYSLER GROUP, LLC
  9. Install the 4WD shift collar (2).
    GC0155100Courtesy of CHRYSLER GROUP, LLC
  10. Install the 4WD shift actuator (1) and torque bolts to 22 N.m (16 ft. lbs.).
  11. Connect the 4WD shift actuator connector.
  12. Install the axle shaft and hub bearing.
  13. Verify correct fluid level.
