Case Assembly, Differential: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0107628Courtesy of CHRYSLER GROUP, LLC
  1. Clean the housing cavity with a flushing oil, light engine oil or lint free cloth.
  2. Lubricate differential case bearing.
  3. Install differential case with bearings cups into the housing (1).
  4. Install bearing caps (2) and bolts. Tighten the bearing cap bolts finger-tight.
    NOTE:

    Do not torque bearing cap and bolts at this time.

    GC0107629Courtesy of CHRYSLER GROUP, LLC
  5. Slide differential case toward the pinion gear until the gears make contact/zero backlash. If zero backlash cannot be obtained, turn the pinion side adjuster until zero backlash is obtained.
  6. Holding the differential case (2) toward the pinion gear, turn bearing adjusters with Wrench (special tool #8883A, Wrench, Differential Adjusting) (1) until they make contact with the differential bearings/cups.
  7. Back off the ring gear side adjuster 4 holes, to obtain initial ring gear backlash.
  8. Install ring gear side adjuster lock and bolt. Do not tighten adjuster lock bolt at this time.
  9. Tighten pinion gear side adjuster firmly against the differential case bearing cup.
  10. Rotate the pinion several times to seat the differential bearings.
  11. Loosen pinion gear side adjuster until it is no longer in contact with the bearing cup.
  12. Tighten pinion gear side adjuster until it just makes contact with the bearing cup.
  13. Tighten pinion gear side adjuster an additional:
    • New Bearings:  6 Adjuster Holes
    • Original Bearings:  4 Adjuster Holes
  14. Install pinion gear side adjuster lock and bolt. Do not tighten adjuster lock bolt at this time.
    GC0107593Courtesy of CHRYSLER GROUP, LLC
  15. Tighten bearing cap bolts (4) to 85 N.m (63 ft. lbs.).
  16. Tighten adjuster lock bolts (3) to 25 N.m (18 ft. lbs.).
  17. Measure ring gear backlash and check gear tooth contact pattern. Refer to ADJUSTMENTS  for procedure.
    GC0155393Courtesy of CHRYSLER GROUP, LLC
  18. Install the intermediate shaft ball bearing in the axle tube.
    GC0155391Courtesy of CHRYSLER GROUP, LLC
  19. Install the intermediate shaft (1). Slide the shaft all the way into the ball bearing.
  20. Replace the right side axle seal. Refer to SEAL, AXLE DRIVE SHAFT, INSTALLATION .
    GC0155390Courtesy of CHRYSLER GROUP, LLC
  21. Install the 4WD shift collar onto the intermediate shaft.
    GC0155100Courtesy of CHRYSLER GROUP, LLC
  22. Install the 4WD shift actuator and torque the bolts to 22 N.m (16 ft. lbs.).
  23. Connect the 4wd actuator connector.
  24. Install axle shafts and hub bearings.

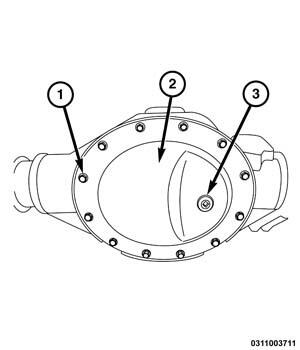

    GC0155388Courtesy of CHRYSLER GROUP, LLC
  25. Install differential housing gasket and cover. Tighten cover bolts to 40 N.m (30 ft. lbs.).
  26. Fill differential with lubricant to specifications.
  27. Install fill plug and tighten to 32 N.m (24 ft. lbs.).
