Case Assembly, Differential: Disassembly

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

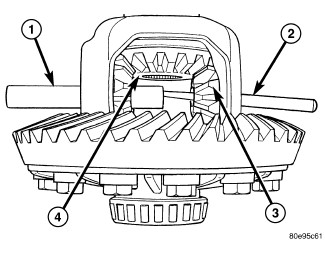

GC0107623Courtesy of CHRYSLER GROUP, LLC
  1. Remove pinion shaft lock bolt.
  2. Remove pinion shaft (1) from pinion gears (3) with a punch (2).

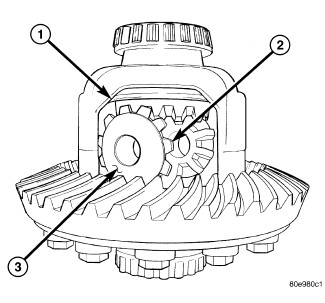

    GC0107624Courtesy of CHRYSLER GROUP, LLC
  3. Rotate differential pinion gears (2) to differential window (1) and remove pinion gears and thrust washers (3).

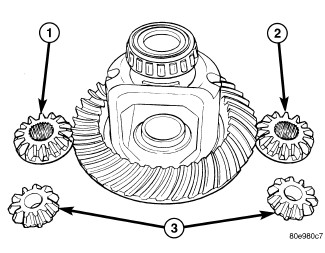

    GC0107625Courtesy of CHRYSLER GROUP, LLC
  4. Remove differential side gears (1) (2) and thrust washers.
