Case Assembly, Differential, Electric Locker: Assembly

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

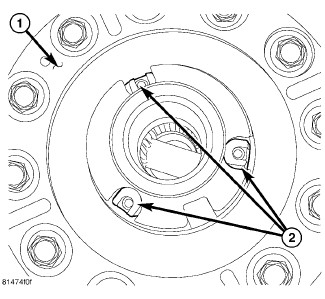

GC0107634Courtesy of CHRYSLER GROUP, LLC
NOTE:

Internal differential components are serviced with the case.

  1. Position locker coil on differential case (1) mounting location (2).
    GC0107633Courtesy of CHRYSLER GROUP, LLC
  2. Clean coil bolts and apply Mopar® Lock AND Seal adhesive to the threads.
  3. Install coil (1) and bolts (2).
    GC0107620Courtesy of CHRYSLER GROUP, LLC
  4. Install differential case bearing (1) with Handle (special tool #C-4171, Driver Handle, Universal) (2) and Installer (special tool #9612, Installer, Bearing) (3).
