Bearing, Differential Side: Removal
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the differential from the housing.

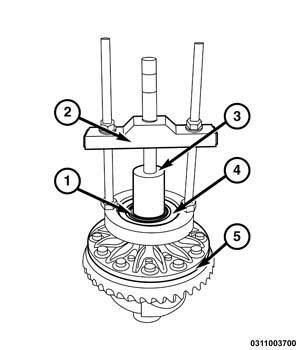

- Install (special tool #9611, Plug, Differential End) (3) into the end of the differential assembly.
- Install (special tool #C-293-PA, Puller, Press) (2) onto the differential side bearing.
- Install (special tool #8879, Adapters, Puller) (4) between the bearing (1) and C-293-PA (2).
- Remove the differential side bearing by tightening C-293-PA.NOTE:
The bridge of C-293-PA could be placed in a proper vise to assist in the removal of the differential bearing.
