Bearing, Differential Side: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
New differential side bearing must be installed. Reinstalling used bearing could affect the operation of the axle.

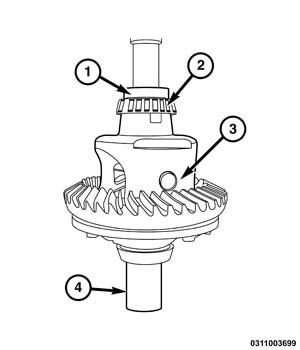

- Place the differential (3) in a suitable press with (special tool #8888, Plug, Differential Bearing) (4) installed in the differential at the bottom.
- Place a NEW bearing (2) on the differential.
- Using (special tool #8881, Installer, Bearing) (1) press the bearing onto the differential.
