Bearing, Differential Side, Electric Locker: Installation
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

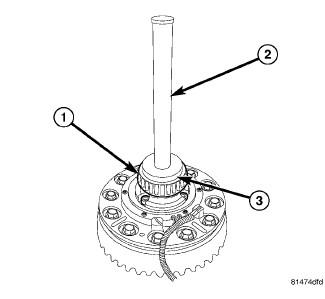

- Install differential case bearings (1) with Handle (special tool #C-4171, Driver Handle, Universal) (2) and Installer (special tool #9612, Installer, Bearing) (3).
- Bend anti-rotation tabs back to original location.
