Valve Body: Cleaning
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

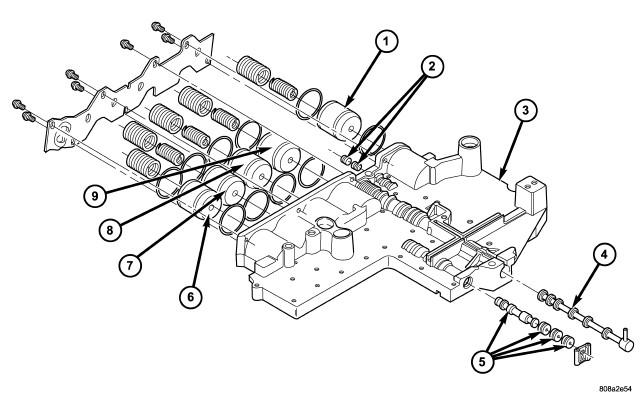

| 1 - LOW/REVERSE ACCUMULATOR |
| 2 - LOW/REVERSE SHUTTLE VALVE AND PLUG |
| 3 - UPPER VALVE BODY |
| 4 - MANUAL VALVE |
| 5 - SOLENOID SWITCH VALVE AND PLUGS |
| 6 - OVERDRIVE ACCUMULATOR |
| 7 - UNDERDRIVE ACCUMULATOR |
| 8 - 4C ACCUMULATOR |
| 9 - 2C ACCUMULATOR |
Clean the valve housings, valves, plugs, springs, transfer plate and separator plate with a standard parts cleaning solution only. Do not use gasoline, kerosene, or any type of caustic solution.
Do not immerse any of the electrical components in cleaning solution. Clean the electrical components by wiping them off with dry shop towels only.
Dry all except the electrical parts with compressed air. Make sure all passages are clean and free from obstructions. Do not use rags or shop towels to dry or wipe off valve body components. Lint from these materials can stick to valve body parts, interfere with valve operation, and clog filters and fluid passages.
