Cable, Shift: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0109171Courtesy of CHRYSLER GROUP, LLC
1 - GEARSHIFT CABLE
2 - RFE TRANSMISSION
3 - MANUAL LEVER
  1. Shift transmission into PARK.
  2. Raise vehicle.
  3. Disengage cable (1) eyelet at transmission manual shift lever (3) and pull cable adjuster out of mounting bracket.
    GC0109172Courtesy of CHRYSLER GROUP, LLC
    1 - GEARSHIFT CABLE
    2 - GROMMET
  4. Lower the vehicle.
  5. Remove the dash panel insulation pad as necessary to access the gearshift cable grommet (2).
  6. Remove grommet (2) from the dash panel.

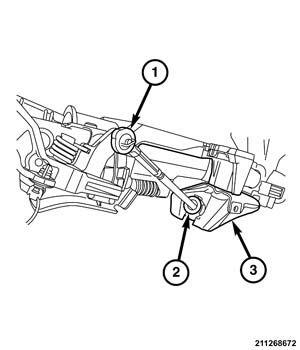

    GC0155156Courtesy of CHRYSLER GROUP, LLC
  7. Remove any steering column trim necessary to access the gearshift cable (2).
  8. Disconnect the BTSI wiring connector.
  9. Disconnect cable at lower column bracket (3) and shift lever pin and pull the cable through the dash panel opening into the vehicle.
  10. Remove gearshift cable (2) from vehicle.
