Front Tilt Motor

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

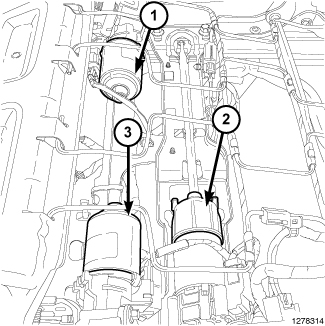

Fig 1: Front Tilt Motor, Power Seat Adjuster Motor & Rear Tilt Motor
GC0087713Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove the affected seat. Refer to SEAT, FRONT, REMOVAL or SEAT, FRONT CENTER, REMOVAL .
  3. Remove the affected seat cushion cover, cushion and pan.
  4. Disconnect the electrical connector from the front tilt motor (1).
  5. Remove the screws retaining the front tilt motor to the seat adjuster.
  6. Remove the front tilt motor from the seat adjuster.
