Motor, Lumbar: Removal: Removal

WARNING: This page is about a different car, the 2012 RAM Pickup and 2012 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

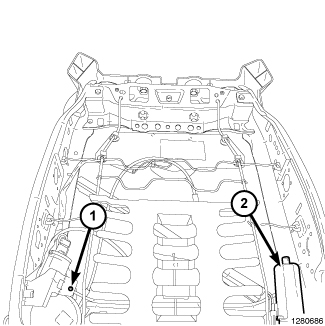

Fig 1: Power Lumbar Motor & Power Seat Recliner Motor
GC0087714Courtesy of CHRYSLER GROUP, LLC
NOTE:

The lumbar motor (1) is serviced as part of the seat back frame. Do not attempt to transfer the motor as the service part will come equipped with a new motor installed.

  1. Remove the seat back frame assembly. Refer to SEAT BACK, FRONT, REMOVAL .
  2. Remove any parts that will need to be installed on new seat back frame assembly. (1)
