Motor, Window Regulator: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

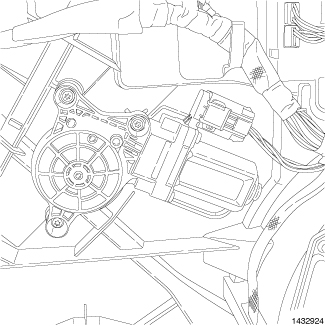

GC0087725Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Remove door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL .
  3. Remove fasteners from motor/regulator.
  4. Disconnect electrical connector.
  5. Remove motor/regulator from carrier plate.
