Center, Power Distribution (PDC): Description

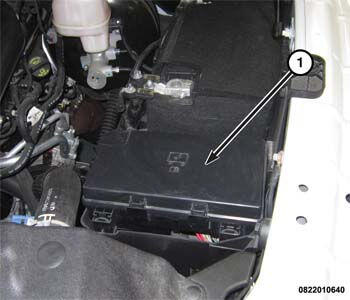

The majority of electrical system fuses and relays are housed in the Power Distribution Center (PDC) located in the engine compartment (1). The molded plastic PDC housing is located forward of the battery.

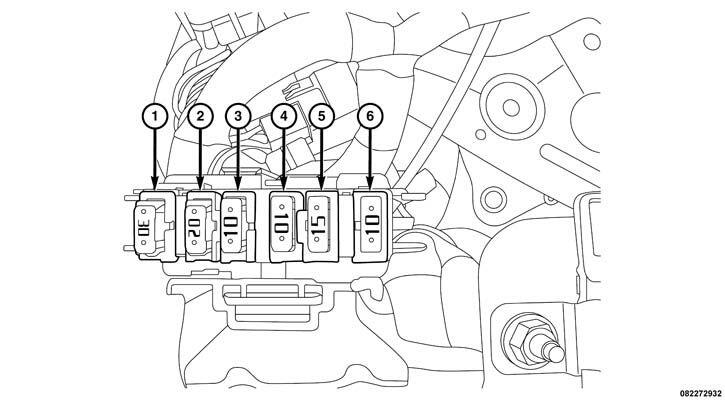

Internal to the vehicle is an external PDC that houses 6 fuses in a connector shell underneath the drivers side dash close to the BCM assembly. It will appear as a capped connector assembly. One fuse is a spare. Fuses in this cavity are for the Radio amplifier, Integrated Trailer Brake Module (ITBM), Parktronics (PTS), Heating and Cooling Control (HVAC) and the Instrument Cluster (IC).
| Exterior PDC Fuses | |
|---|---|
| Fuse | Component |
| 1 | Auxiliary Switch Bank Module (ASBM), HVAC and Integrated Center Stack (ICS) |
| 2 | Integrated Trailer Brake Module (ITBM) |
| 3 | Parktronics (PTS) |
| 4 | BCM and Cluster - Exterior Lighting Feeds |
| 5 | Spare |
| 6 | Radio with Built in Amplifier |
The PDC located next to the battery is replaced only as part of the body wiring harness.
For fuse description and layout, refer to FUSE - RELAY LOCATIONS AND TYPES, SPECIFICATIONS .
