Non Sport Bumper

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

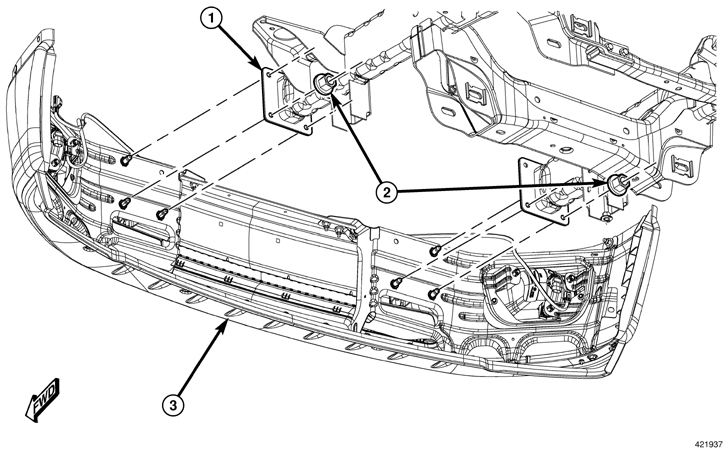

GC0088221Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .
  2. Disconnect the electrical connectors.
  3. Support the bumper with a suitable lifting device.
  4. Remove the nuts (2) and remove the bumper (3).
