Standard Procedure: Lubrication
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of CHRYSLER GROUP, LLC
|

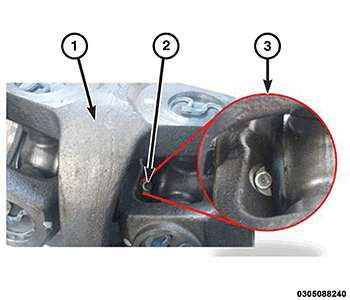

Vehicles with double cardan universal joint front driveshafts (1) are equipped with a grease fitting (2).
 Courtesy of CHRYSLER GROUP, LLC
|
Grease the double cardan universal joint (1) at each oil change using an appropriate grease gun at the fitting (2). Inset (3) shows a close up view of the grease fitting (2).
