Bearing, Drive Shaft Center, Light Duty: Removal

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

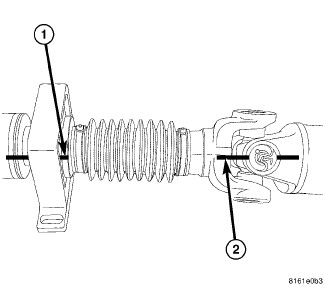

GC0083218Courtesy of CHRYSLER GROUP, LLC
  1. Remove rear propeller shaft.
  2. Make installation reference marks on the shaft (1) and slip yoke (2).
    GC0083219Courtesy of CHRYSLER GROUP, LLC
  3. Remove slip joint boot (1) clamp (2).

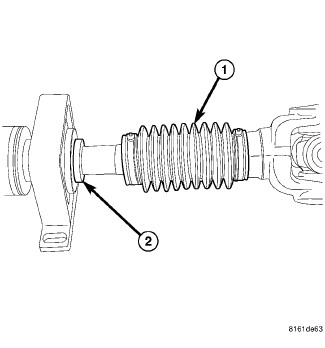

    GC0091580Courtesy of CHRYSLER GROUP, LLC
  4. Slide boot (1) off boot collar (2) and separate the two shafts.

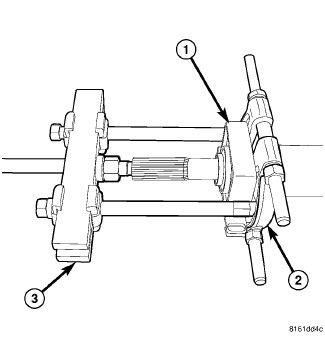

    GC0083220Courtesy of CHRYSLER GROUP, LLC
  5. Position Bearing Splitter Tool (special tool #1130, Splitter, Bearing/Gear) (2) between slinger and center bearing (1).
  6. Install Bridge (special tool #938, Bridge) (3) on the splitter (2) and remove center bearing (1).
