2500 And 3500

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GC0107569Courtesy of CHRYSLER GROUP, LLC
  1. Remove rear propeller shaft.

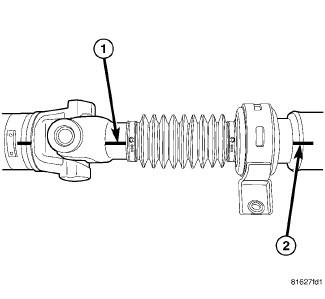

  2. Make installation reference marks on rear shaft (1) and front shaft (2).
    GC0107570Courtesy of CHRYSLER GROUP, LLC
  3. Remove slip joint boot (1) clamp (2).
    GC0107571Courtesy of CHRYSLER GROUP, LLC
  4. Slide boot (1) off boot collar (2) and separate the two shafts.
    GC0107572Courtesy of CHRYSLER GROUP, LLC

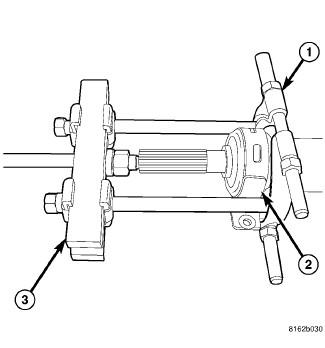

  5. Position Bearing Splitter Tool (special tool #1130, Splitter, Bearing/Gear) (1) between propeller shaft and center bearing (2).
  6. Install Bridge (special tool #938, Bridge) (3) on the splitter (1) and remove center bearing.
