Sensor, Height: Installation

WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

All pressurized air suspension components contain high pressure air (up to 220 psig). Use extreme caution when inspecting for leaks. Wear safety goggles and adequate protective clothing when inspecting or servicing the air suspension system. A sudden release of air under this amount of pressure can cause possible serious or fatal injury.

WARNING:

Before performing any service on the air suspension system, the system must be disabled to prevent the system from changing ride height. Before any given component is to be serviced it must be deflated. Servicing the air suspension system without the system disabled, or with pressure in any specific component, can cause possible serious or fatal injury.

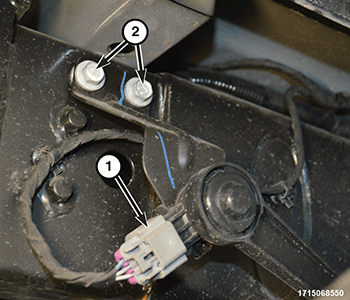

GC0169749Courtesy of CHRYSLER GROUP, LLC
  1. Position the height sensor assembly in the vehicle.
  2. Install the two height sensor bolts (2). Tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
  3. Connect the wire harness connector (1).
  4. Align the height sensor rod end and press the link socket over the ball stud on the lower control arm.
  5. Lower the vehicle.
  6. Perform the Curb Height Measurement to get values for input to the scan tool in the next step. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
    NOTE:

    Make sure the scan tool preferences are set to metric. When writing the measured values to the Air Suspension Control Module (ASCM) they will need to be in millimeters.

  7. With a scan tool, using the routines under the ASCM, perform the following:
    • Perform the Curb Height Measurement and record the values for input to the scan tool. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
    • Perform the Write Suspension Height Values routine and input measurements recorded as prompted by scan tool.
    • Command the vehicle to Normal Ride Height (NRH) again.
    • Perform the Curb Height Measurement again and verify specifications. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
    • Run the Height Sensor Check routine on the air suspension system.
    • Enable the air suspension system.
  8. Perform the ASCM VERIFICATION TEST. Refer to STANDARD PROCEDURE .
