Sensor, Height: Description
WARNING: This page is about a different car, the 2017 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

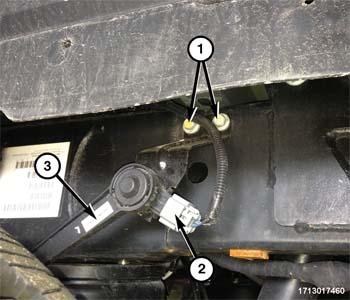

The air suspension system is equipped with rear height sensors. The rear height sensors are located on the rear corners of the vehicle, near the rear shock absorbers.
The rear height sensors are attached to the frame. A rod from the rear height sensor is connected to the lower control arm. Any changes in the rear vehicle ride height are sent to the Air Suspension Control Module (ASCM).
